WIRELESS
ENDOSCOPE CAMERA:
HD Mobile Wireless Camera
Managing incoming light is a major challenge in digital sensor design, with
reflections and light leaks causing overexposure and washed-out images. This
camera addresses these issues with efficient image processing algorithms and
an advanced lens design. It features multi-layer glass lenses for excellent depth
perception and clear images. The device also uses its advanced CPU to stream
live video to mobile devices in real-time at high frame rates, ensuring a natural
user experience.
Managing incoming light is a major challenge in digital sensor design, with reflections and light leaks causing overexposure and washed-out images. This camera addresses these issues with efficient image processing algorithms and an advanced lens design. It features multi-layer glass lenses for excellent depth perception and clear images. The device also uses its advanced CPU to stream live video to mobile devices in real-time at high frame rates, ensuring a natural user experience.
Better Vision, Better Results
100x Magnification
Provides up to 35× native
optical magnification and up
to 100× digital magnification.
Advanced Imaging Technology
The device features adjustable brightness to accommodate low & dim lighting conditions

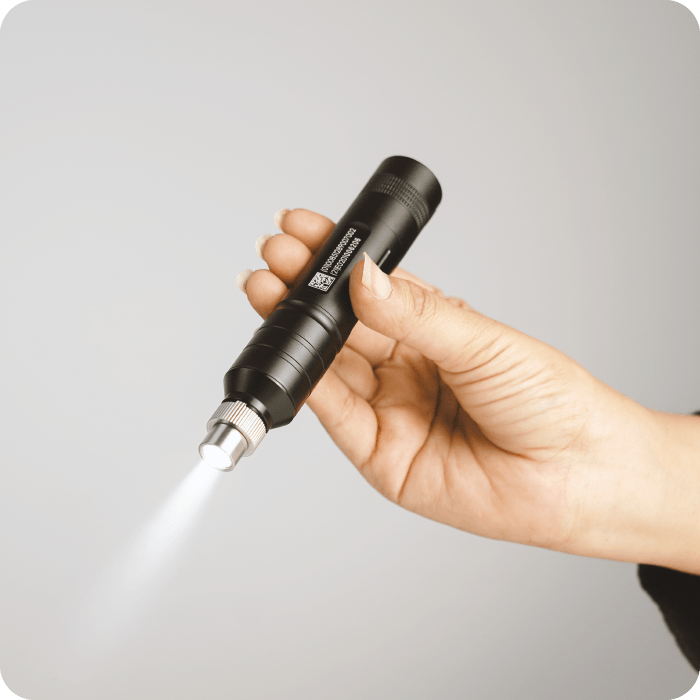

Compact Light LED Source Features
With a rechargeable lithium battery, the LED light source provides
unparalleled flexibility in performing endoscopic applications.
The state-of-the-art, ultra-bright LED provides 6500K color temperature and maximum brightness to produce top quality endoscopy imaging.
Based on a lightweight but rugged construction, the LED light source is easy to use without hindering mobility during endoscopic applications.
Wireless Endoscope
Camera Benefits
Camera Benefits

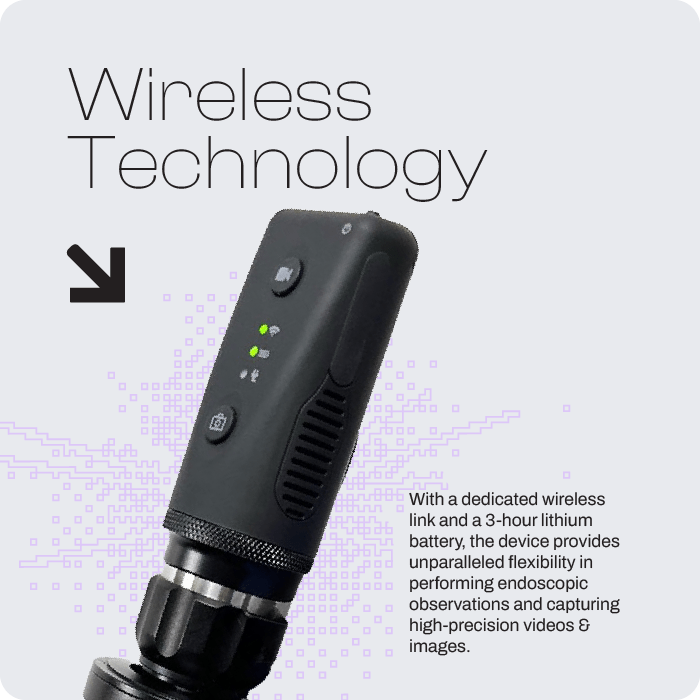

Completely Wireless Operation
Captures Snapshots & Videos
Compatible with Rigid Endoscopes & Most Flexible Endoscopes
Has ENT, Urology, Gynecology, & Veterinary Applications
Works with iPad, iPhones, & Android Tablets and Phones
Compact LED Light Source Benefits
Completely Wireless Operation
5-Watt Ultra-white LED
6500K Color Temp, CRI ANSI White
IP×7 Water Ingress Rating
4-hour Operation
2 Rechargeable Batteries & AC Charger Included
Ideal for Mobile Endoscopic Applications in a Variety of Fields
Camera
Technical Details
| Magnification | Native Optical: 15x – 35x Digital: 15x – 100x |
| Sensor Resolution | HD 1280 x 720 |
| Lens Assembly | Multi-Layer Glass Lenses F = 22mm |
| Video | Format: MP4 |
| Image Files | PNG |
| Wireless Link | WiFi |
| Battery | Built-in 1500mAH |
| Accessories | AC Charger |

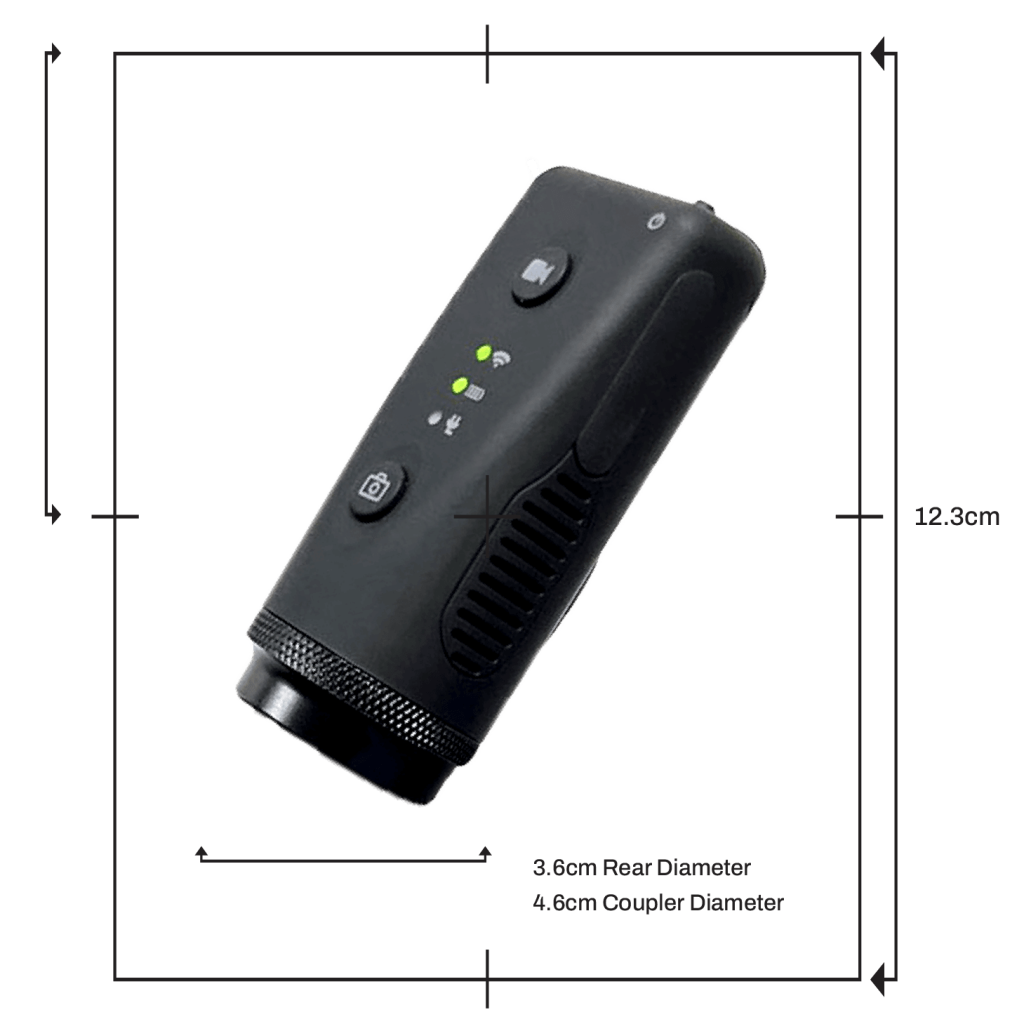

| Dimensions | 12.3cm Length 3.6cm Rear Diameter 4.6cm Coupler Diameter |
| Software | Pinch Zoom, Pause, Image Capture, Video Capture, Adjustable Brightness, Automatic White Balance |
| Supported Platforms | iPad Air 2, iPad Mini 3 and up, iPhone 6 and up, Android 6 and up on devices with dual band WiFi Support |
| Warranty | 1-year Limited Hardware Warranty |
Compact LED Light Source Dimensions
